Sentry Guarding Panel Sizes

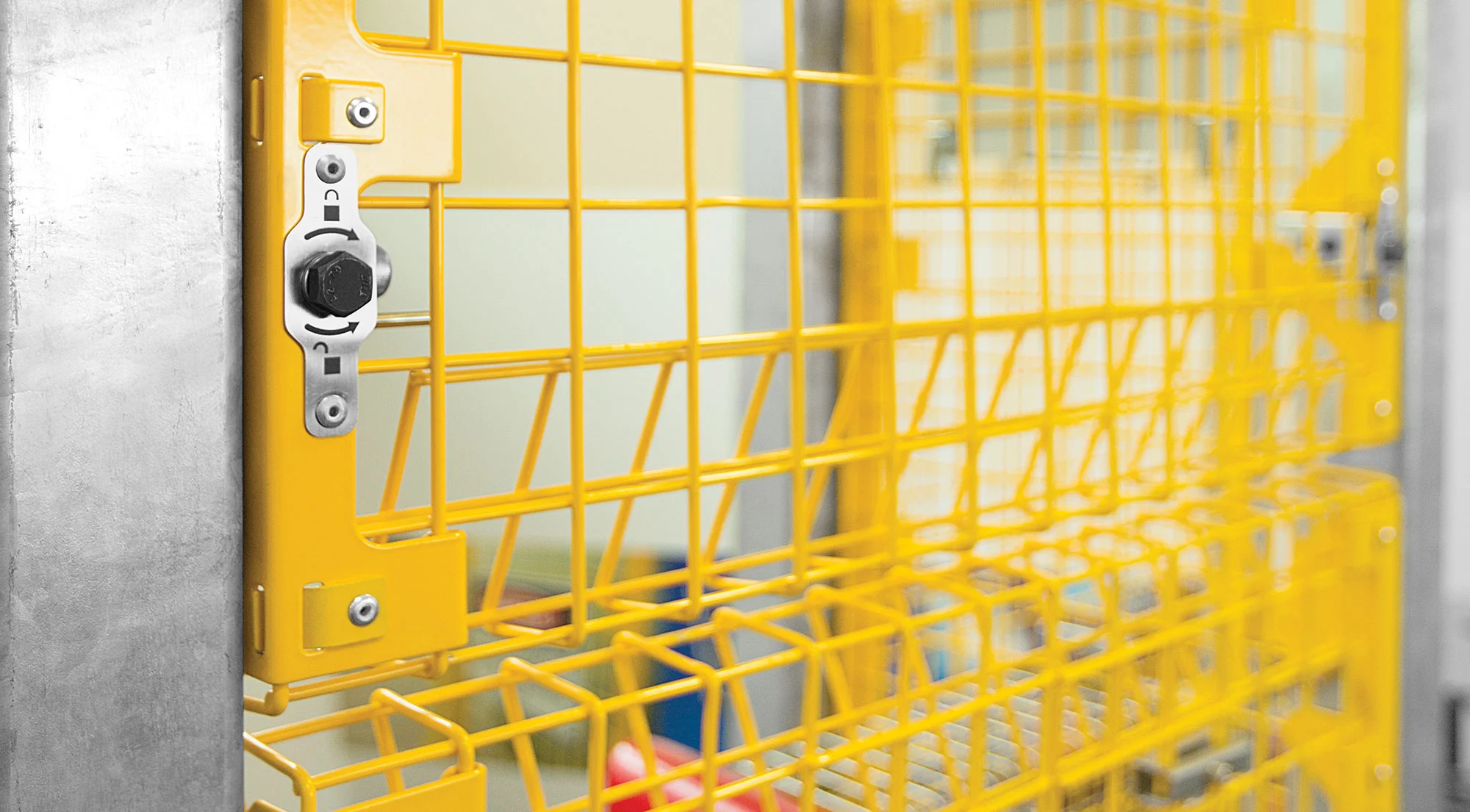

Guarding side brackets comes in three heights, 1200, 900 and 600. The 1200 side bracket comes in a top latch and a bottom latch option to enable user to access the locking mechanism in high guarding situations. The 900 and 600 brackets are both equipped with a bottom latch mechanism. Special order for 900 and 600 side brackets, with top latch, is also available but may incur additional cost.
Sentry Guarding Panel Configurations

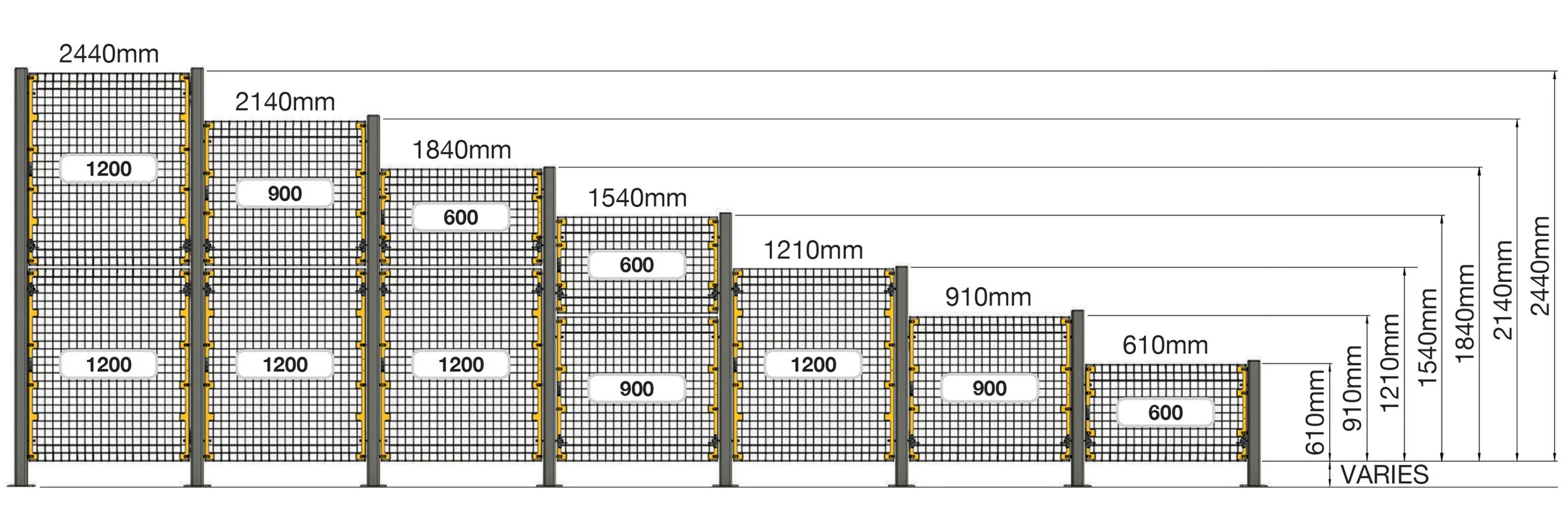

Using a combination of all three bracket heights with a 180mm bottom clearance (adjustable as required), a maximum Guarding height of approximately 2.6m can be achieved with an increment of 300mm.
See below Guarding height with different panel configurations.
Side Bracket Order Part Number
Side brackets can be ordered directly from us.
The part number will specify the latch position and size of the side bracket. Side brackets can be ordered either as a pair (left hand side + right hand side) or individually.
Guarding Bracket Description
600 Side Bracket Pair (latch at bottom)
Part no: SGS_BL_600_PR
900 Side Bracket Pair (latch at bottom)
Part no: SGS_BL_900_PR
900 Side Bracket Pair (latch at top)
Part no: SGS_TL_900_PR
1200 Side Bracket Pair (latch at bottom)
Part no: SGS_BL_1200_PR
1200 Side Bracket Pair (latch at top)
Part no: SGS_TL_1200_PR
